SNMP Function and Private Mold Smart Switch 4300 Series Ethernet 24 Ports EX4300-24T

Product Categories

Shanghai Apying Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

private mold : NO

products status : Stock

ports : 24

transmission rate : 10/100/1000Mbps

function : LACP, POE, QoS, SNMP

communication mode : Full-Duplex & Half-Duplex

switch capacity : /

brand name : /

model number : EX4300-24T

place of origin : Shanghai, China

Size : Customized Size

Color : Customizable

Suitable for : Workstation, Laptop, Desktop

Price : CN¥7,940.72/pieces 1-1 pieces

Contact Now

Product Description

Form factor	Fixed platform Virtual Chassis configuration consisting of 10 switches
Dimensions (W x H x D)	17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm) 1 rack unit
Backplane speed	320 Gbps (Virtual Chassis)
Data rate	448 Gbps
Throughput	333 Mpps (wire speed)
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities	4 per switch Up to 20 in Virtual Chassis configuration (assuming 2 ports per switch are used for forming Virtual Chassis)
100GBASE C form-factor pluggable transceiver (CFP) port densities	N/A
Resiliency	Internal, hot-swappable redundant power supply; field-replaceable fans; graceful Routing Engine switchover (GRES) in Virtual Chassis configuration
Operating system	Junos OS
Traffic monitoring	sFlow
Quality-of-service (QoS) queues/port	12
MAC addresses	64,000
Jumbo frames	9216 bytes
IPv4 unicast/multicast routes	32,000/8000
IPv6 unicast/multicast routes	18,000/4000
Number of VLANs	4093
ARP entries	64,000

Specification

Product Description

Company Profile

Packing & Delivery

FAQ

hotselling

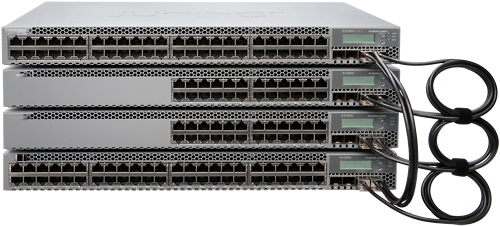

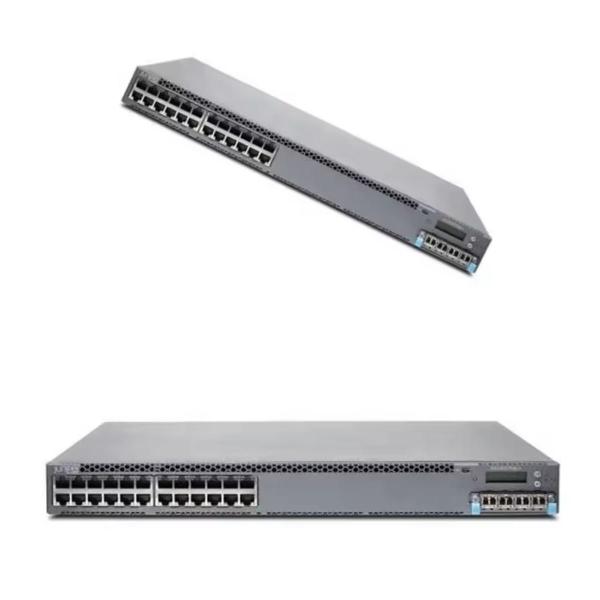

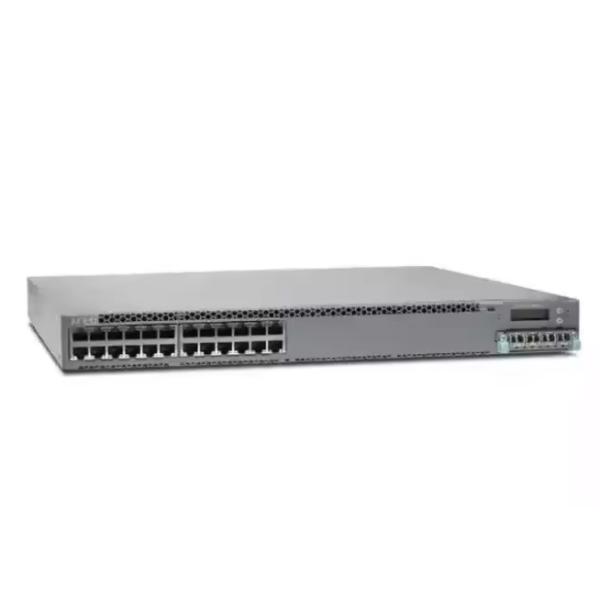

SNMP Function and Private Mold Smart Switch 4300 Series Ethernet 24 Ports EX4300-24T Images
